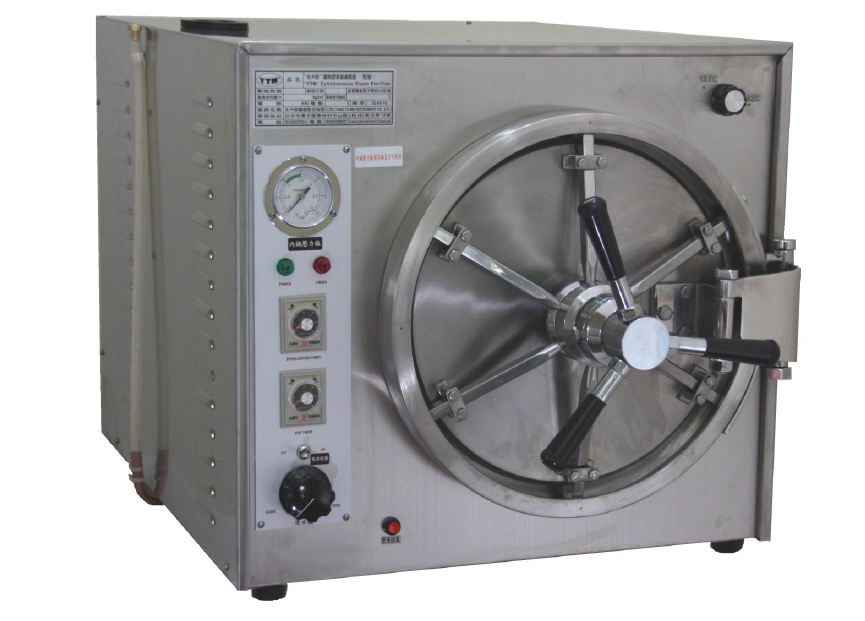

Desktop automatic autoclave


Views:1937




Model: YTM-S1 / YTM-S2 / YTM-S3 / YTM-S4
Internal dimensions: ψ 23 cm × 41 cm deep / ψ26 cm × 46 cm deep / ψ30 cm × 50 cm deep / ψ30 cm × 60 cm deep
External dimensions: height 49 width × 44 × 53cm depth / height 56 width × 50 × 56cm depth / height 60 width × 55 × 60cm depth / height 60 width × 55 × 70cm deep
Volume: 17 liters / 24 liters / 35 liters / 42 liters
Power supply: 220V, 50/60Hz (± 10%)
Pot material (shell and base): both SUS # 304 (or more) of stainless steel.
Sterilization temperature and pressure: minimum 121 ℃ (or more), up 134 ℃ (inclusive).
Sterilization pressure: 1.2 kg / cm 2 (or more) to 2.0 kg / cm 2.
Attached storage tanks: Each storage can be used more than 10 times disinfection; attach silicone level indicator tube.
Tank cover and use the silicone door gasket.
Automatic stroke: heating, sterilization, drying automatic operation, disinfection is completed, and automatic power-off warning bells.
Stainless steel or copper pipes, fittings made ​​of copper.


Each attachment:
(1) Automatic operation control panel
(2) Sterilization Timer (1 to 30 points) (to change the timer time)
(3) drying timer (1 to 30 points) (to change the timer time)
(4) Sterilization Process Indicator
(5) the pot temperature gauge
(6) anhydrous automatic disconnection of electronic devices
(7) safety valve, automatic controller 0020
(8) stainless steel disinfection box (the size of the pot with sterilized pot)
