Test distance
|
5m when the installing distance is 80cm, 4.8m when the installing distance is 60cm
|
|
Installing distance
|
80cm or 60cm
|
|

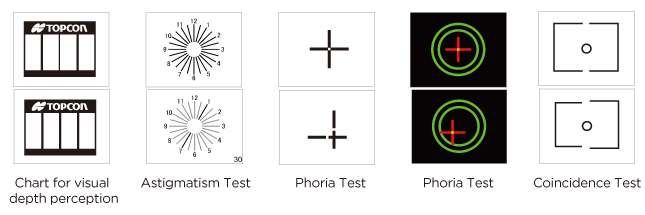

Test chart
|
Visual acuity test chart for visual acuiy 0.03 - 2.0 and visual function test chart
|
|
Chart display
|
Charts of one horizontal line, one vertical line, one character, R&G, reversed B&W are displayed. Contrast can be changed.
|
|
Luminance
|
80 - 320cd/m2 (from the vertex of the patient to the chart window of the instrument)
|
|
Contrast
|
85% or more
|
|
Dimensions
|
440mm (W) × 339mm (D) × 1,330mm (H)
|
|
Weight
|
19.5kg
|
|
Electric rating
|
Power supply voltage : AC 100-240V
Frequency : 50-60Hz
Power supply input : 50VA
|
